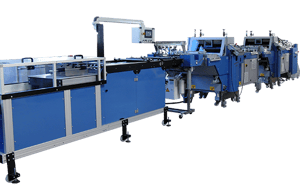

Bograma BSR Folding Carton Production System

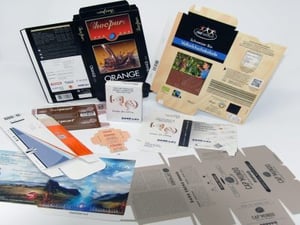

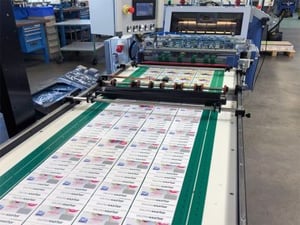

Bograma expands the BSR family of rotary diecutters to include a configuration specifically for B2 sheet size, folding carton production. This system includes two diecutting stations to allow for a more traditional two-step cutting/scoring method. Register is impeccable, setup is very fast and stripping is all inline making the system perfect for the fast turn, short run printing and packaging environment.  Configure as shown in the gallery below with a pile stacker or integrate directly with H+H / MBO finishing modules such as the 091.1 folder gluer,  tip-on units or other delivery systems.  Huge advantage over flatbed diecutters because the process does not require nicks and provides a clean product with no additional labor. The magnetic flexible dies can thru-cut, kiss cut, perforate, crease and emboss and are widely available from many die tooling manufacturers.

Standard Features:

  • Pallet style sheet feeder, great for short or long runs

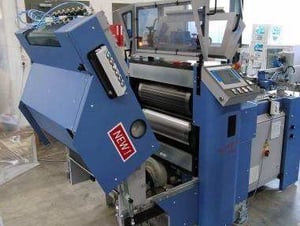

  • Die-cutting cylinder system with two magnetic cylinders
  • Can use male-female or single sided die configurations
  • Synchronized die cylinders for perfect register of any die set

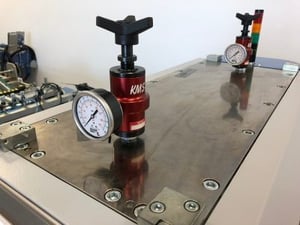

  • Die cylinders with bearers for fast, no-shim make-ready
  • Fast die change using precision register pins in cylinders
  • Dies can be dis-mounted and re-used many times in short run environments

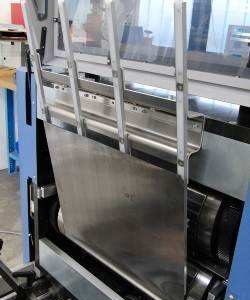

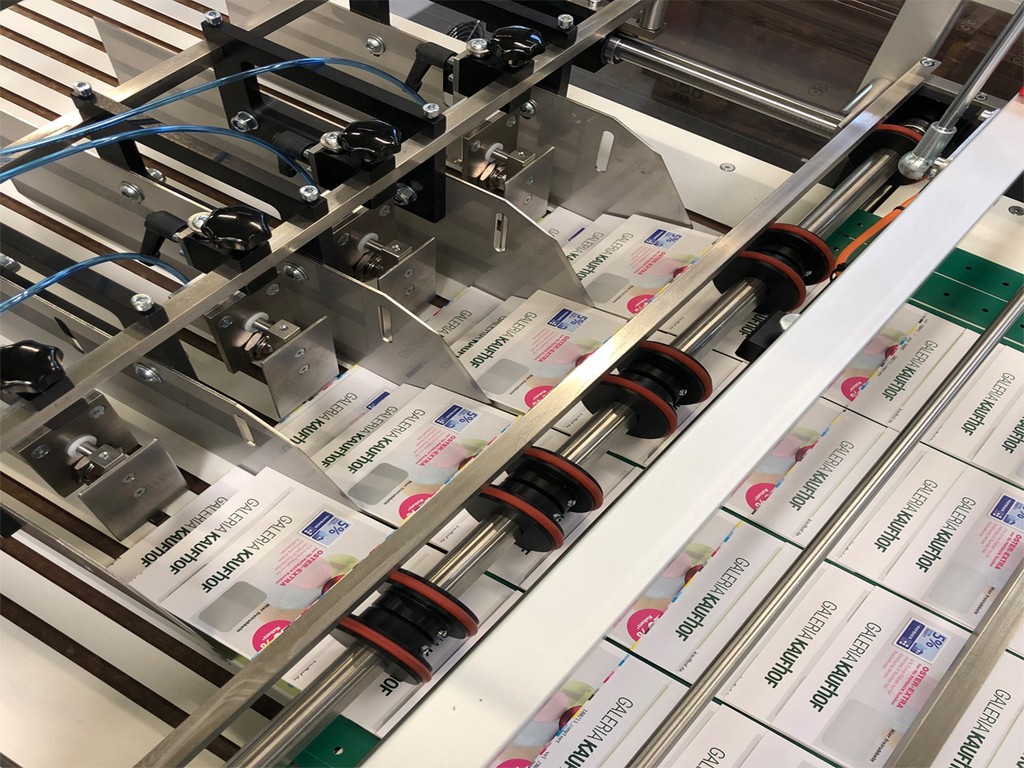

  • Integral, inline waste and matrix removal
  • Programmable internal scrap stripper for removal internal holes and windows
  • Modular and scalable control system to allow many optional feeder systems or post diecut systems
  • SH 550 Shredder for chip and scrap removal

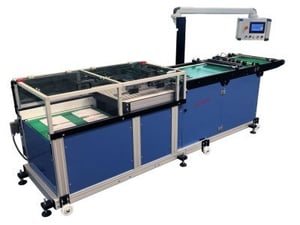

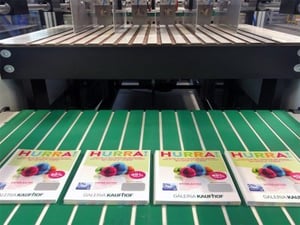

  • STA 550 R Stacker

General Specifications At-A-Glance

  1. Die Cylinder Circ:                                81.6 cm         (32”)
  2. Sheet Size Minimum:                         296 mm x 210 mm
  3. Sheet Size Maximum:                         550 mm x 750 mm (B2)
  4. Speed Maximum:                                8,000 sph
  5. Paper Stock Minimum:                      80 gsm          60 #
  6. Paper Stock Maximum:                     0.50 mm       19 pt
