Roll Fed Finishing Modules

MBO integrates a wide range of roll fed finishing modules to make creative and flexible web finishing solutions that are perfect for your business and will efficiently increase your productivity and your bottom line.

Modules

SVC 525 C Sheeter (20.5″)

The SVC 525 C is the heart of our state of the art high speed web finishing line, providing high quality, precision chop-cuts or chipout-cuts for webs up to 20.5" wide and cutoffs from 4"-80" long.

SVC 775 C Sheeter (30″)

The SVC 775 C Sheeter is the heart of our state-of-the-art high speed web finishing line, providing high quality precision chop-cuts or chipout-cuts for webs up to 30" wide, and cutoffs from 4"-80" long.

FC 23/30 Aqueous and UV Coating Unit for Webs

The FC web coating unit applies aqueous (water based) or UV based (chemical based) coating to enhance and protect the printed web.

DPS 60 Dynamic Perf and Score Unit

MBO DPS 60 Dynamic Perforating and Scoring unit is a modular unit that applies dynamic or static, perf or score patterns, inline or across a web.

PFS Plow Fold Station

The PFS module is a web based plow folding module installed prior to the sheeter to add an extra inline fold pattern to the finishing line capability. It is used to make items such as newsletters and self-mailers.

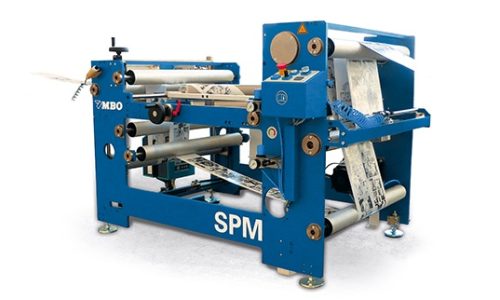

SPM Split and Merge Unit

The SPM is a specialty machine designed to handle split and merge tasks for web finishing systems.

DFT560 Digital Folder (22″)

The DFT 560 Digital Folder is an inline folding machine designed to parallel fold sheets in a digital web finishing line.

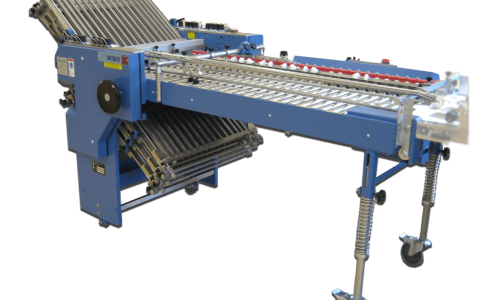

Digital FWII 68 Folder (26″)

The Digital FWll 68 is an 8-page style, mobile folding unit that can be used for first and second position folds depending upon the application

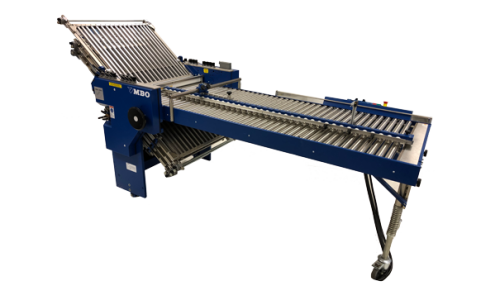

Digital FWII 780 Folder (30″)

The Digital FWII 780 is the primary folding unit for the 30" digital web finishing line capable of producing single up and multi-up folded products.

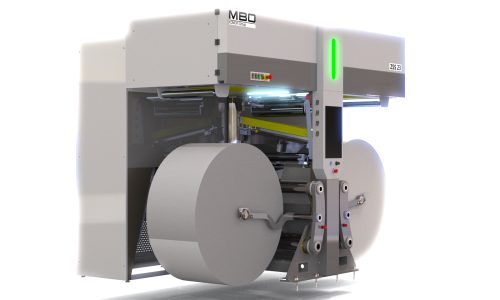

UW 23 Unwinder (23.0″)

MBO UW 23 Unwinder steps up tension control, and has a faster makeready than previous units, and has a max web width of 23".

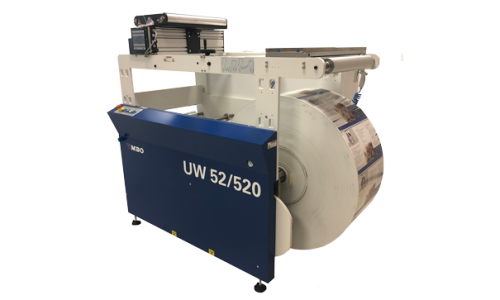

UW 52/520 Unwinder (20.5″)

The dynamic unwinders possess a dancer-controlled web tension and center-driven servo motor drive and can be applied in all applications of digital printing machines or web finishing lines.

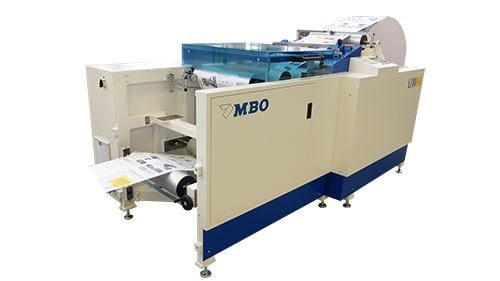

UW 60 Unwinder

• Integrated Decurling
• Precise Tension Control
• Integrated to All Web Presses

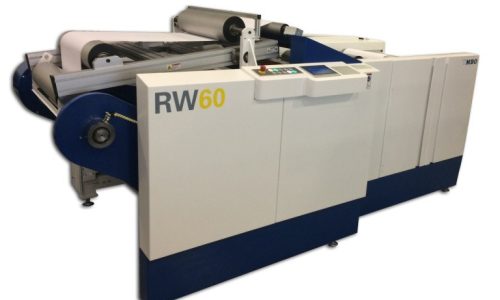

RW 60 Rewinder

• Integrated Festoon
• Precise Tension Control
• Integrated to All Web Presses

381 Cutting Unit

The 381 module is a multi-shaft cutting tables with interchangeable tooling. These units can cut, score, perf, and more and go inline with MBO finishing systems.

407 Cross Carrier Table

The 407 is a cross carrier table used primarily for product alignment during transfers between machines.

091.1 Folder Gluer Vacuum Table

The 091.1 is a vacuum style folder gluer used for plow folding, tipping, gluing, cross folding and other folder-gluer processes.

EM Ejection Module

The Ejection Module is an independent unit which can be used after the SVC cutter for the ejection of control sheets or missed printed sheets.
