DFT560 Digital Folder (22")

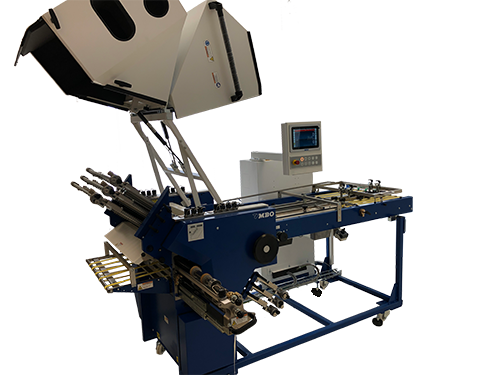

The DFT 560 is buckle folding unit with register table designed in synch with MBO’s high speed core folding machines. This versatile buckle folder can perform multiple folds along with slitting and perfing and scoring through use of the integral slitter shaft module at the exit of the buckle plates. The value of having a buckle folder in line with a sheeting system comes from the fact that the cutoff of the sheet can be from 6” to 49” and the folder can process it. This harnesses the true value of a completely variable digital printing system. Operation of the folder is easy and uses the same core technology and designs as traditional MBO folding machines for the cutsheet and offset markets.

Features and Benefits

  • Folder unit designed with a running direction from right to left, a mobile frame and locking castors

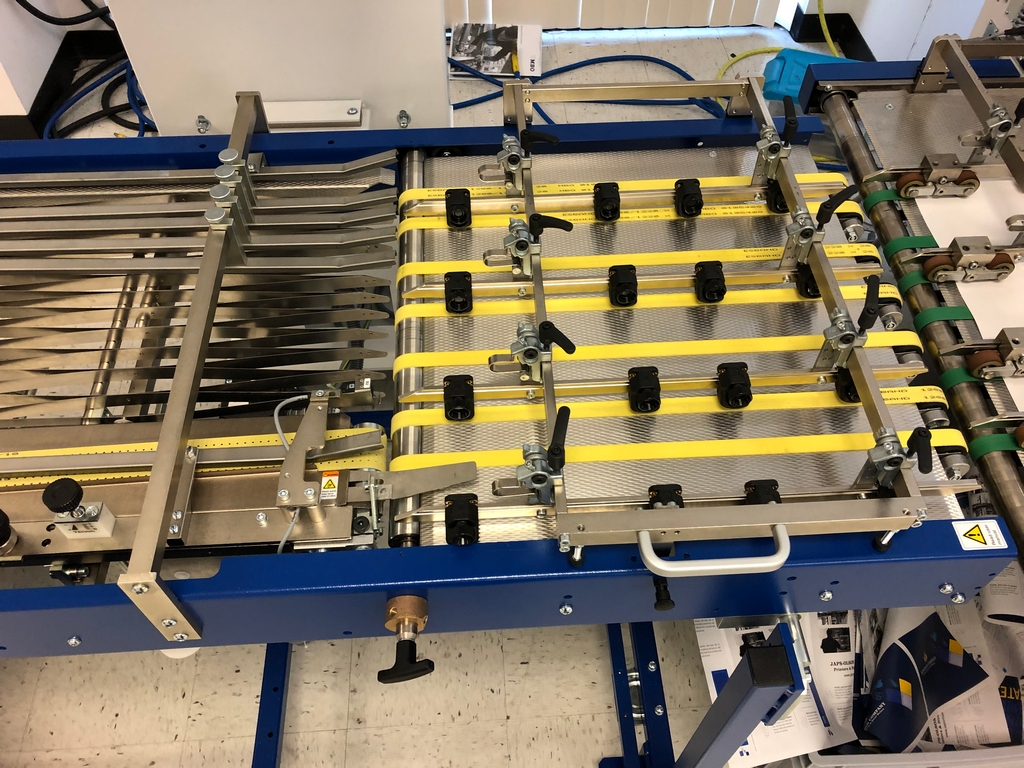

  • Non-marking, Anti-static lattice style register table to align the sheets prior to folding
  • Vacuum belt system on left side used to align the sheets to the side guide
  • Six (6) buckle plates with swing deflectors for a multitude of fold patterns (4 plates also available)
  • Solid curved sheet stops in first buckle plate to prevent marking
  • MBO exclusive low maintenance and low noise belt drive
  • MBO exclusive, non-marking fold rollers with PU coating
  • Slitter shafts located on the exit side of the unit to take our edge trim, gutter trim and score.
  • Slitter shafts are designed with quick release cups for rapid exchange makeready
  • Control system connection to the sheeter including speed following

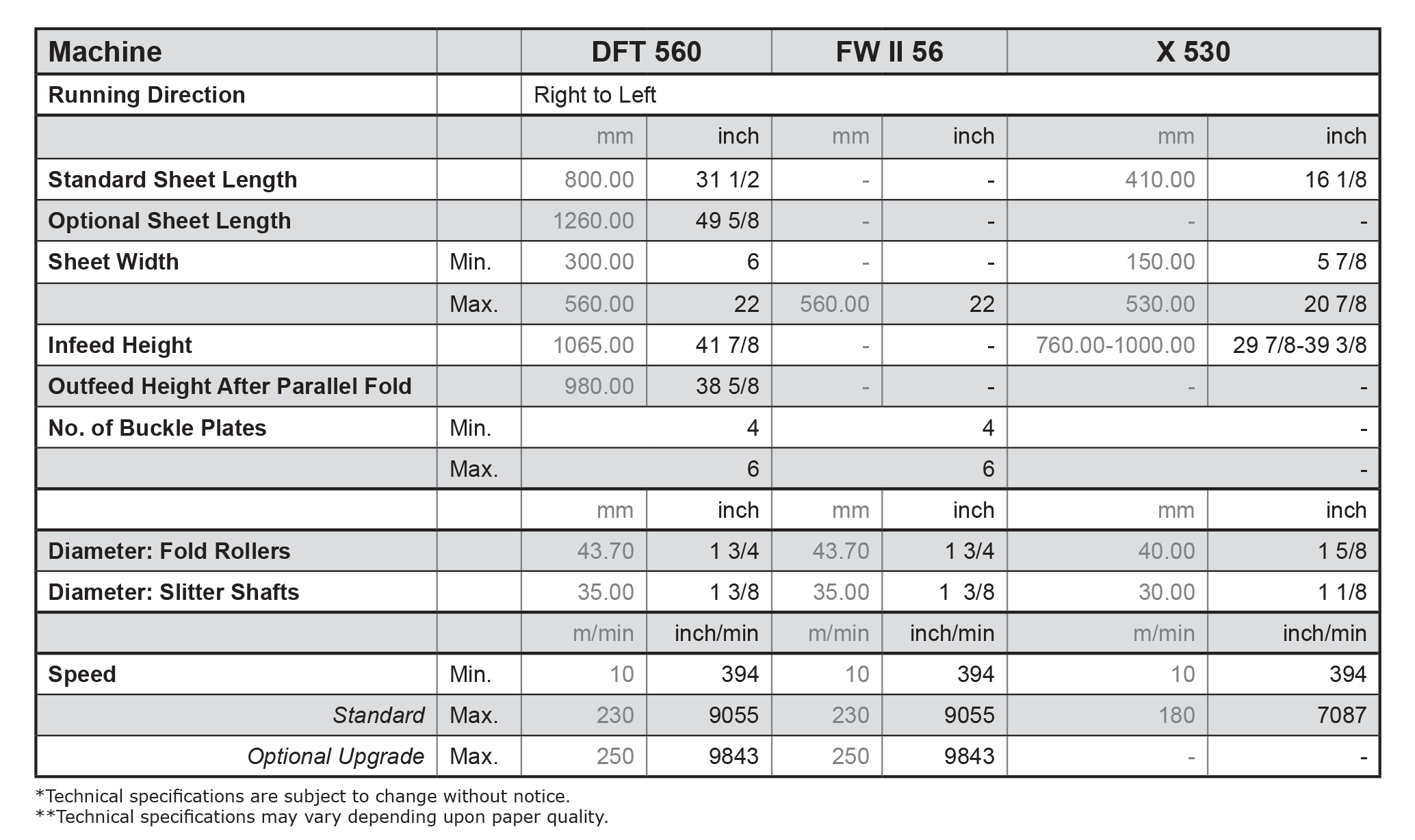

Technical Specifications
