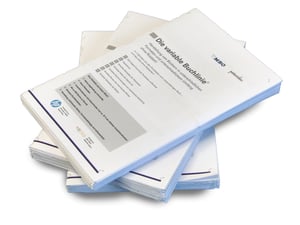

Fully Automated High Speed Book Blocks

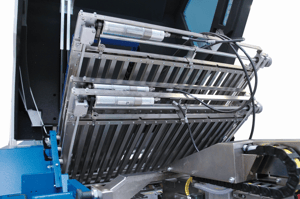

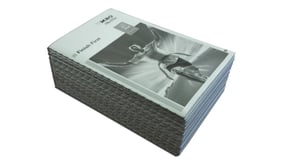

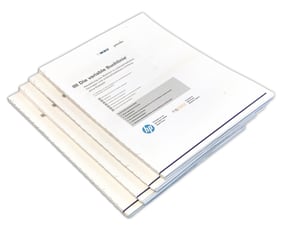

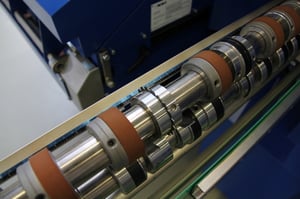

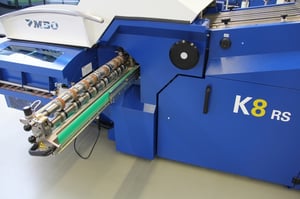

The K8RS-Digital Roll To Book Block Production System from MBO America is our top of the line system with highest levels of automation geared for the book printer.  It is an efficient, high speed roll-to-book finishing line designed to have a simple set up and high production rate.  The system is designed for 20.5”, 22.5″ or 30″ web widths.  The system will cut the web to the proper sheet length using a chop-cut or chip-out cut depending upon the need.  The sheet can be cut from 5” long to 48” long to match the unfolded length of the signatures.  Print to cut register control is achieved by a print register mark on the web and the sheeter will register in real time for all cuts.  After sheeting, the line will register the sheet and advance it to the folding system that consists of buckle plates and knife folders capable of making signatures from the sheets ready for block stacking.  The signatures are transferred to the stacker in order to make book blocks and additionally glue them if needed.  The system will have the capability to make all common A4 and A5 size signatures such as 8, 12, 16, 20, 24 and 32 page products.  Slitters and other tooling integral to the buckle folders will also allow enhancements to the sheet such as spine perfs.  The near-line system has a maximum web sheeting speed of 824 fpm but is also dependent upon factors such as paper quality, operator capability, environment and other factors.  This is a fully automated system with push button setup of the folding and sheeting units creating a very fast makeready and highly productive book block production system.

General Specifications “At-A-Glance”

  • Roll Diameter Maximum:       1320mm (52”)
  • Web Width Minimum:            150mm  (6”)
  • Web Width Maximum:            520mm (20.5), 572mm (22.5″), 762mm (30″)
  • Web Speed Maximum:            250m/m (824fpm)
  • Paper Stock Minimum:           40 gsm
  • Paper Stock Maximum:          250 gsm
  • Common Size Folds:               A4 & A5
  • Max Folded Width:                 Up to web width
  • Number of Parallel Folds:      4 or 6 Buckles
  • Max Number of Cross Folds:        1K, 1T

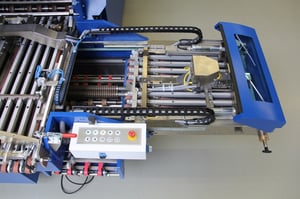

  • Max Number of Third Folds:        1K

Components

  • MBO UW 52 Unwinder
  • MBO SVC High Speed Sheeter
  • MBO EM80.1 Ejection module

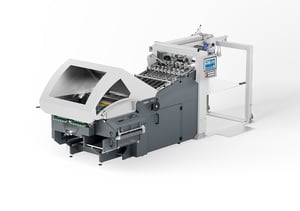

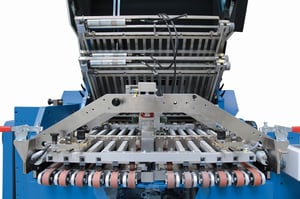

  • MBO K8RS Digi-Folder
  • MBO Alpha 500 Plus Book Block Stacker with Gluer
  • Optional MBO DPS 60 Dynamic Perf & Score Unit (up to 22.5″ web width only)
  • Optional Camera Inspection Systems
