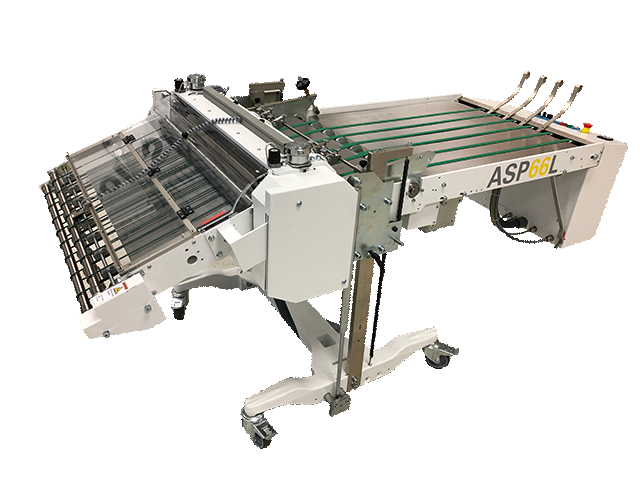

ASP 66 & 82 Shingle Deliveries

The ASP models are mobile and height-adjustable, shingle stream deliveries with an integrated pressing station and integrated batch offsetting feature making them ideal for small to medium circulations. The simple shingle method is the most versatile slow down delivery available and can work with nearly any product and nearly any configuration.  There is a low marking risk so it is well suited for sensitive and freshly printed products. These features make them perfect for systems with frequent production line changeovers and a wide variety of applications.


  • Integrated, 2 station, pressing station for removal of air and flatter result
  • Standard 2-up capability
  • Offsetting feature (also known as a marking device) for identifying batches
  • Simple design and few moving parts for trouble-free production
  • Large holding capacity on laydown table
  • Spreading belts at infeed for multiple-up streams
  • Adjustable “waterfall” height between pressing unit and shingle belts
  • Integral light barrier and counter
  • “L” version standard in USA market for longer dwell time

Optional Features:

  • Upgrade for 3-up production
  • ASP 82-2ME wide machine for 4-up production
  • Automatic retaining rolls

Technical Specifications

ASP Shingle Delivery with Offsetting Feature
