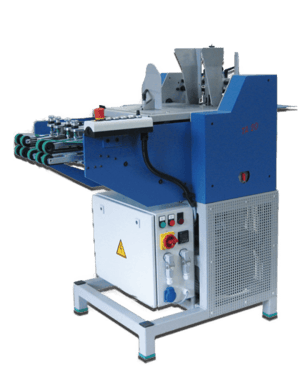

TA 20 Drum Feeder

The TA 20 is a high-performance drum style feeder for folded/thicker products with low, comfortable working height.  The feeder can be used in many configurations that include feeding the highly effective BSM cutter units.  Because of its modularity it can be used in many of MBO’s integrated systems to feed signatures and other folded products.

Standard Features:

  • Capacity 3’000 – 20’000 sheets/h
  • Format min. 75 x 148 mm
  • Format max. 310 x 430 mm
  • Product thickness max. 5 mm
  • Vacuum pump 25 m3/m
  • Feeding height adjustable from 1’090 – 1’130 mm
  • Exit height adjustable from 980 – 1’020 mm
  • Exiting table extension length of 250 mm
  • Space requirement approx. 1’300 x 700 mm (L x W)
  • Weight approx. 340 kg
  • Power supply 3 x 400VAC / N / PE 50/60Hz / 16A
  • Power 0,75 kW
  • Vacuum pump 1,5 kW

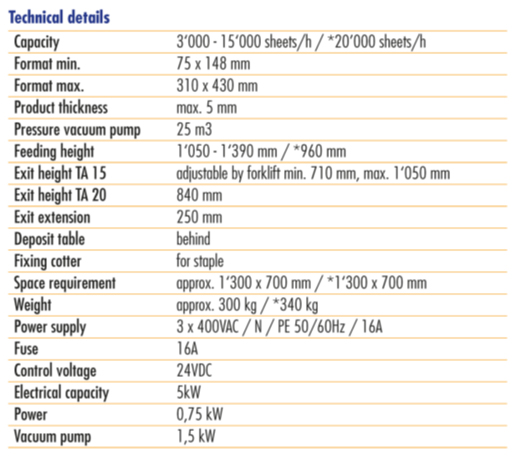

Technical Specifications
