90 Panel and Under Pharma

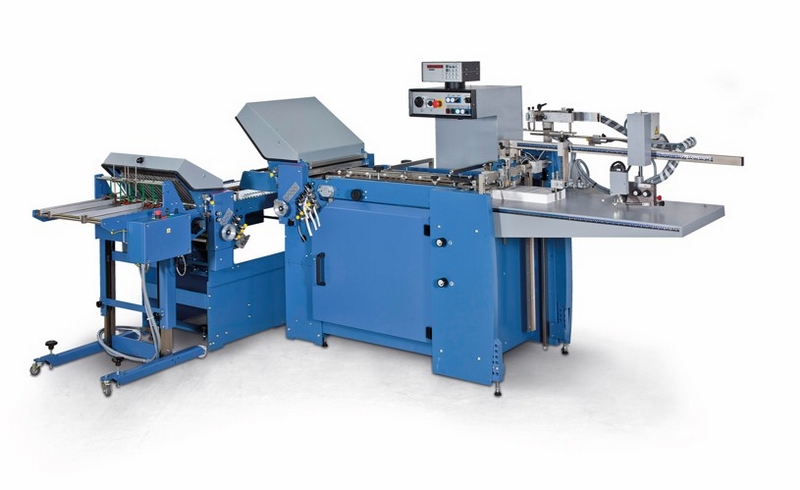

KL112.1 + M7.32 Pharma Folders

MBO America offers unique systems to produce Inserts and Outserts, with 12 to 90 panel counts, using the KL112.1 and M7 Pharmaceutical Folders.  The lines are generally equipped with 8-16 buckle plates in the first unit, 2-4 buckle plates in the second unit and finished with a series parallel knives & pressing units, and closed with either glue or labels.  Systems can be completed with options for water scoring, inspection, quality checks and more.  MBO is a leader with the use of a label to close the product, minimizing the puffy end product commonly made when glued.  Furthermore, label closing preserves 4 more panels for information and the tighter closure leads to more inserts in the tray for better feeding results at the packager.  Your customer will thank you for label closing the insert.  Whether you need traditional glue closure or upgraded label closure, MBO America provides the small panel count market with efficient systems.


 Features and Benefits

  • Upt to 18 plates in the main fold unit

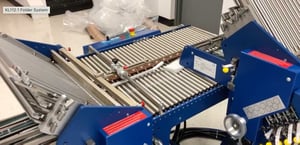

  • Minimum fold length of up to 18 mm (0.71”) with KL112.1 units

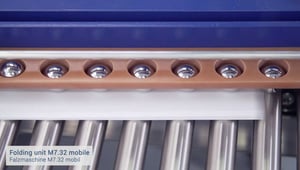

  • Minimum fold length of up to 25 mm (1”) with M7.32 units
  • Glue closure or label closure at the final fold
  • Series of knives and pressing units depending upon panel count and thickness of product

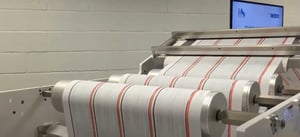

  • Choice of web fed, pile fed or continuous fed configurations giving you the right solution for nearly all applications
  • Modular design and unique configurations with labelers, knife units, gluers, turners, deliveries and more, can be combined for customized solutions

Technical Specifications
