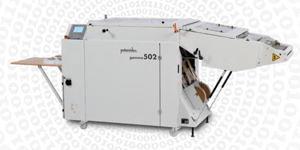

GAMMA 502 STACKER/BANDER

With the gamma automatic delivery, you can rely on higher productivity at lower personnel costs. Sturdy, easy-to-handle stacks ensure easy handling and low labor requirements.

The gamma is mobile with a small footprint that can be easily used with folding machines, saddle stitchers, gathering machines, and digital finishing lines. The flexible design allows for the optional use of a paper band to secure loose bundles to keep them from falling over. The stacker presses, counts, measures, stacks, bands (if needed), and pushes to a buffer table in running direction. With speeds out up to 600 bundles/h per stream, the gamma creates a very effective, low labor requirement process.

Standard Features

Pressing station
Automatic format control and discharge of missing sheet
Side jogging operated from the outside
Automatic setup in running direction
Banding (can be switched on and off)
Jogging device
Counter
Mobile frame with locking wheels
Foldable delivery table
Small format device to reduce the minimum format to (infeed width) 90 mm/3.5” x (infeed length) 65 mm/2.5 ”

Options

Blow air device for better processing of products that “unlock”
Transport of stacks on conveyor belts and roller carpet instead of buffer table top – to minimize slippage of non-banded stacks
Antistatic device for better processing of products with a tendency to static charging

T50 BUCKLE FOLDER

GAMMA 502 STACKER/BANDER

With the gamma automatic delivery, you can rely on higher productivity at lower personnel costs. Sturdy, easy-to-handle stacks ensure easy handling and low labor requirements.

Standard Features

Options

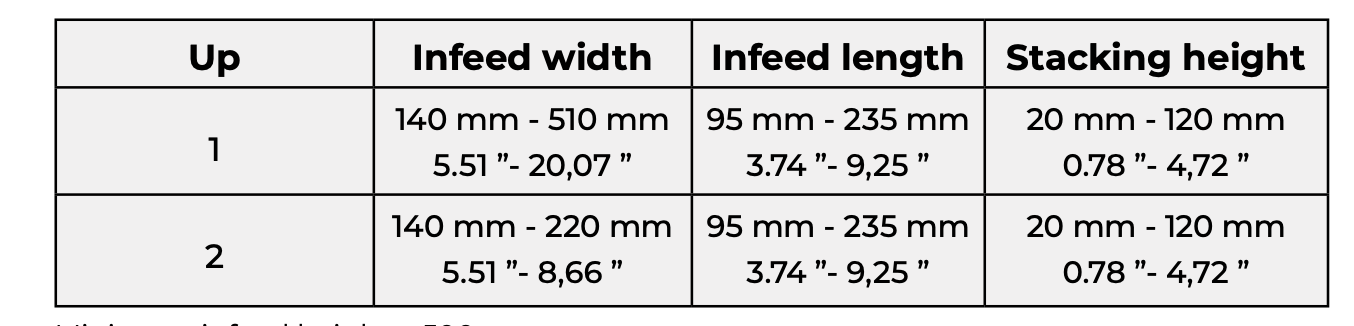

TECHNICAL SPECIFICATIONS
