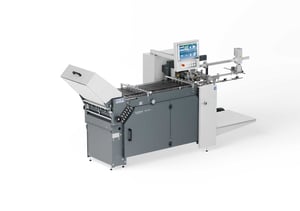

KL112.1 MINIATURE FOLDING UNIT

KL112.1 Miniature Folding unit

The KL112.1 is designed for small (miniature) products produced on commercial or pharma grade stocks most commonly associated with the “PI” and insert/outsert markets.

Request Information

The KL112.1 is designed for small (miniature) products produced on commercial or pharma grade stocks most commonly associated with the “PI” and insert/outsert markets.

The combination of 26 mm diameter folding rollers and up to 16 fold plates makes the KL112.1 capable of minimum fold lengths as low as 18 mm and large input sheet sizes. The KL 112.1 uses a modular design and can be matched to glue units, knife fold units, various deliveries, pressing units, and more to make a versatile and customized folding system. It can handle a wide range of run lengths by having two available feeders; pile or continuous.

Description

Features & Benefits

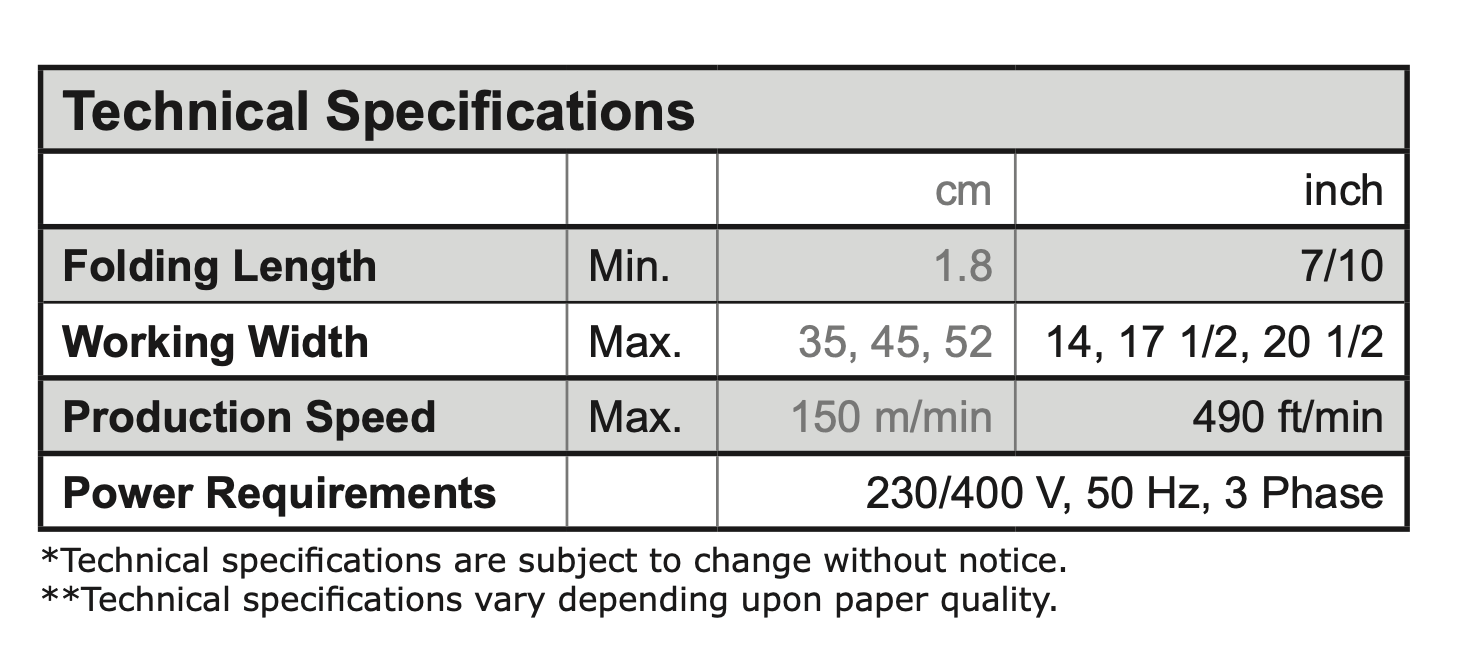

Technical Data

Downloads

Images

Videos

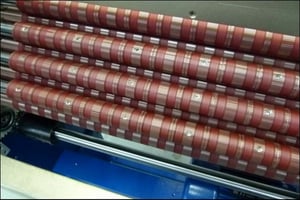

The KL 112.1 is an easy to use miniature folding machine built by Herzog+Heymann. One of the unique features with the KL 112.1 is the radial positioning of the fold rollers which give operators superior control when setting up jobs. Other folding units have linear positioning, but with radial positioning the operator has greater control over gaps between the rollers and the fold plates. Thanks to MBO’s modular approach to finishing, the KL 112.1 is compatible with a wide range of Herzog+Heymann and MBO finishing modules.

Minimum 18mm fold length (26mm rollers)

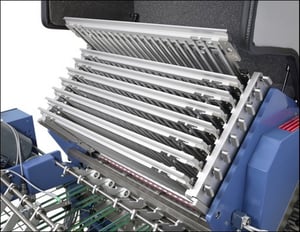

2 to 16 fold plates in the parallel unit
Working widths of 35, 45 and 52 cm

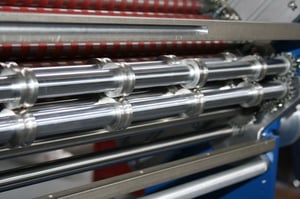

20 mm diameter slitter shafts for crease/score/slit tooling
Modular, flexible, fast, robust

Standard Features

Ultrasonic double sheet control at the infeed helps minimize the risk of jams by detecting a double sheet before it gets to the folder
Can be equipped with 2 - 16 fold plates, making it ideal for a wide range of pharmaceutical and miniature folded products
Compatible with a wide range of MBO and Herzog+Heymann finishing modules
Specialty fold plates and rollers insure maximum precision and control during the folding process

Options

Glue application systems
Gatefold plates
Noise reducing hoods

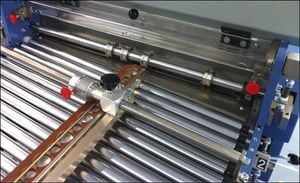

Pre-slitter shaft
Tooling including pharma-creasing, centerbleed device, head or tail slitting, tear-off perforation
Various feeders, knife units, pressing stations and deliveries
