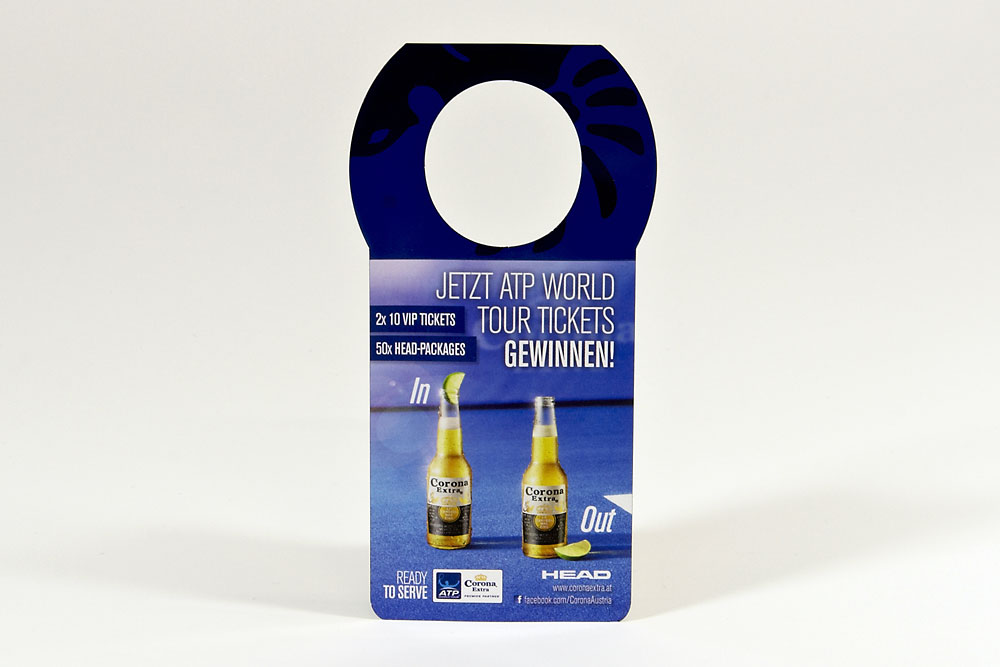

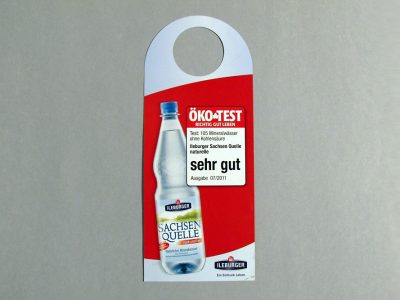

Door and Bottle Hangers

Using the BSR Rotary Diecutter

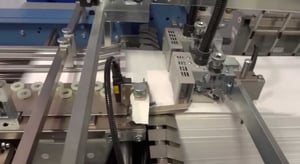

The BSR Rotary Diecutter works well for general size tags and labels.  Multiple up layouts on the sheet are die-cut with clean, nick-free edges, then delivered in a shingled stream to the delivery table.  The scrap matrix is stripped away, along with any internal hole slugs for things like hanger holes or windows.  Speeds up to 8,000 sheets per hour are possible on the BSR Basic model and 12,000 sheets per hour on the full version.  Labor is reduced to a minimum because there are not additional steps to remove the scrap or to grind off nicks.  Machine uptime is at a high level due to the short makeready times for hanging rotary die plates and setting up the programmable stripping unit.  Because of the short makeready and high speed capability, the BSR can fit into the fast paced digital print world or be comfortable in the high volume offset world.

Features and Benefits:

  • Single step process reducing labor and shorter turn times
  • Nick free edges for the highest product quality
  • Short makeready for more machine uptime
  • Repeatable die changes for recurring jobs
  • B2 format to allow digital and offset sheet work
  • Modular design for flexibility and configuration scaling

This Solution Generally Consists of…

Technical Specifications

BSR550 Servo Rotary Diecutter Brochure
BSR550 Basic Rotary Diecutter
BSR550 Servo Rotary Diecutter
